The application, as it is.

Captures of the running application, not renders or mock-ups — taken by a script that opens each model and photographs the window. They follow the site's light or dark theme.

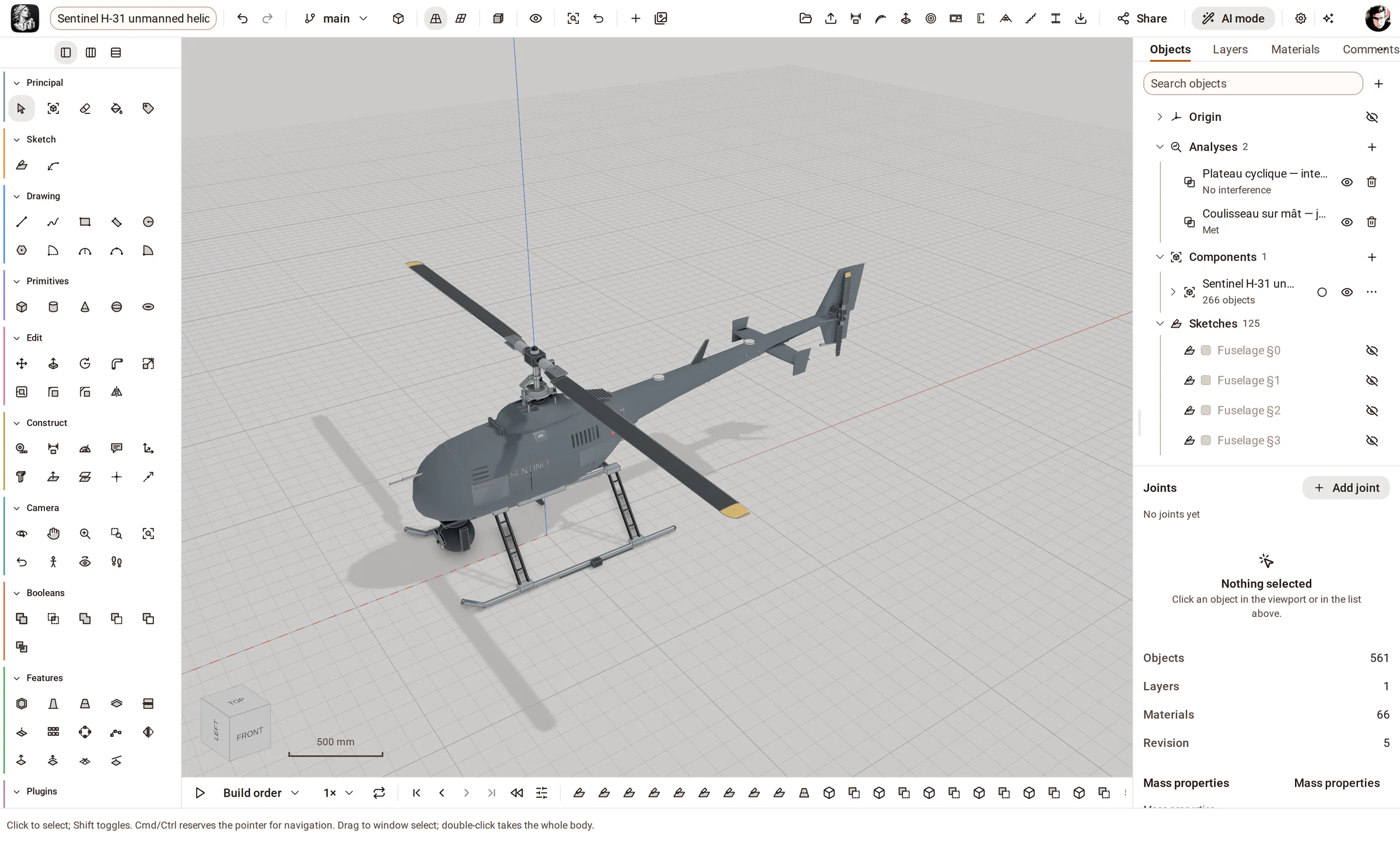

An unmanned helicopter — eight components — rotor head and swashplate, tail rotor, landing gear, EO/IR gimbal — in 7075-T6, titanium and carbon. — An unmanned helicopter
Eight components — rotor head and swashplate, tail rotor, landing gear, EO/IR gimbal — in 7075-T6, titanium and carbon.

An underwater ROV — 185 bodies: six thrusters, a pressure housing behind an acrylic dome, buoyancy foam and ballast. — An underwater ROV
185 bodies: six thrusters, a pressure housing behind an acrylic dome, buoyancy foam and ballast.

A six-wheeled rover — hub motors, trailing arms and coil-overs on six wheel stations, LiDAR and a pan-tilt mast. — A six-wheeled rover
Hub motors, trailing arms and coil-overs on six wheel stations, LiDAR and a pan-tilt mast.

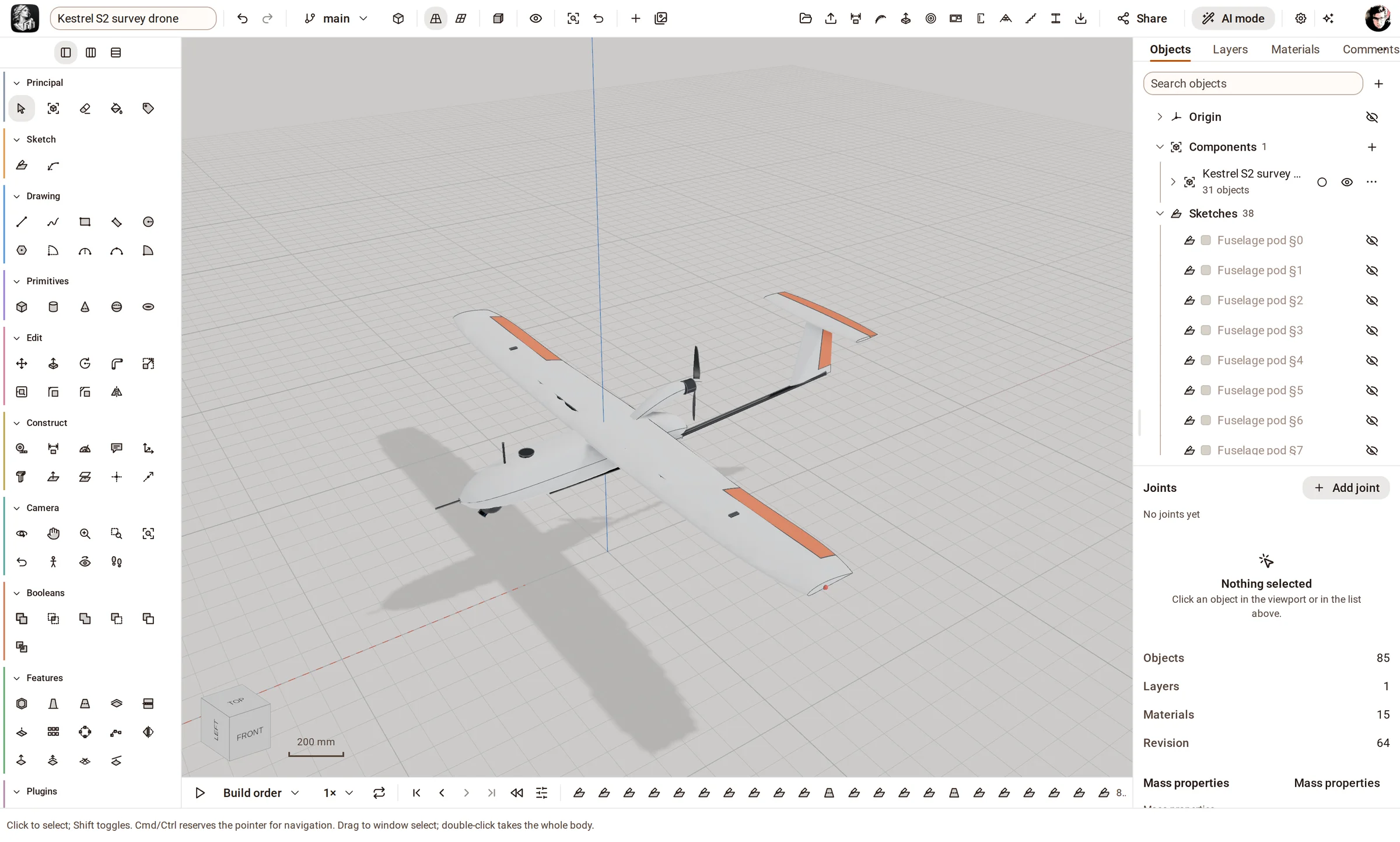

A fixed-wing survey drone — a 2.2 m wing, a pusher motor, a T-tail and a 2-axis gimbal. — A fixed-wing survey drone
A 2.2 m wing, a pusher motor, a T-tail and a 2-axis gimbal.

An electric bike with an open frame — twelve components, eighteen interference and clearance analyses and four stress studies. — An electric bike with an open frame
Twelve components, eighteen interference and clearance analyses and four stress studies.

A five-cylinder radial engine — crankshaft, master and link rods and ten valves on 89 joints, driven through 720° by a motion study. — A five-cylinder radial engine
Crankshaft, master and link rods and ten valves on 89 joints, driven through 720° by a motion study.

A timber house — 1,432 timber members and 427 panels laid out by the Timber module. — A timber house
1,432 timber members and 427 panels laid out by the Timber module.

An apothecary cabinet — twenty drawers as components, an envelope check and a drawer clearance check. — An apothecary cabinet
Twenty drawers as components, an envelope check and a drawer clearance check.

A 5010 brushless motor — 129 bodies; the housing at 30 % opacity shows stator, magnets and bearings. — A 5010 brushless motor
129 bodies; the housing at 30 % opacity shows stator, magnets and bearings.

An A-frame house — an outline design, ready for the construction modules. — An A-frame house
An outline design, ready for the construction modules.

A tiny house concept — timber cladding and glazing, presented in a saved scene. — A tiny house concept
Timber cladding and glazing, presented in a saved scene.

A printable box with a screw-on cap — threads and knurls from the parts library, printability checked by requirements. — A printable box with a screw-on cap
Threads and knurls from the parts library, printability checked by requirements.

The modeling workspace — tool rail, view, browser, inspector and timeline. — The modeling workspace
Tool rail, view, browser, inspector and timeline.

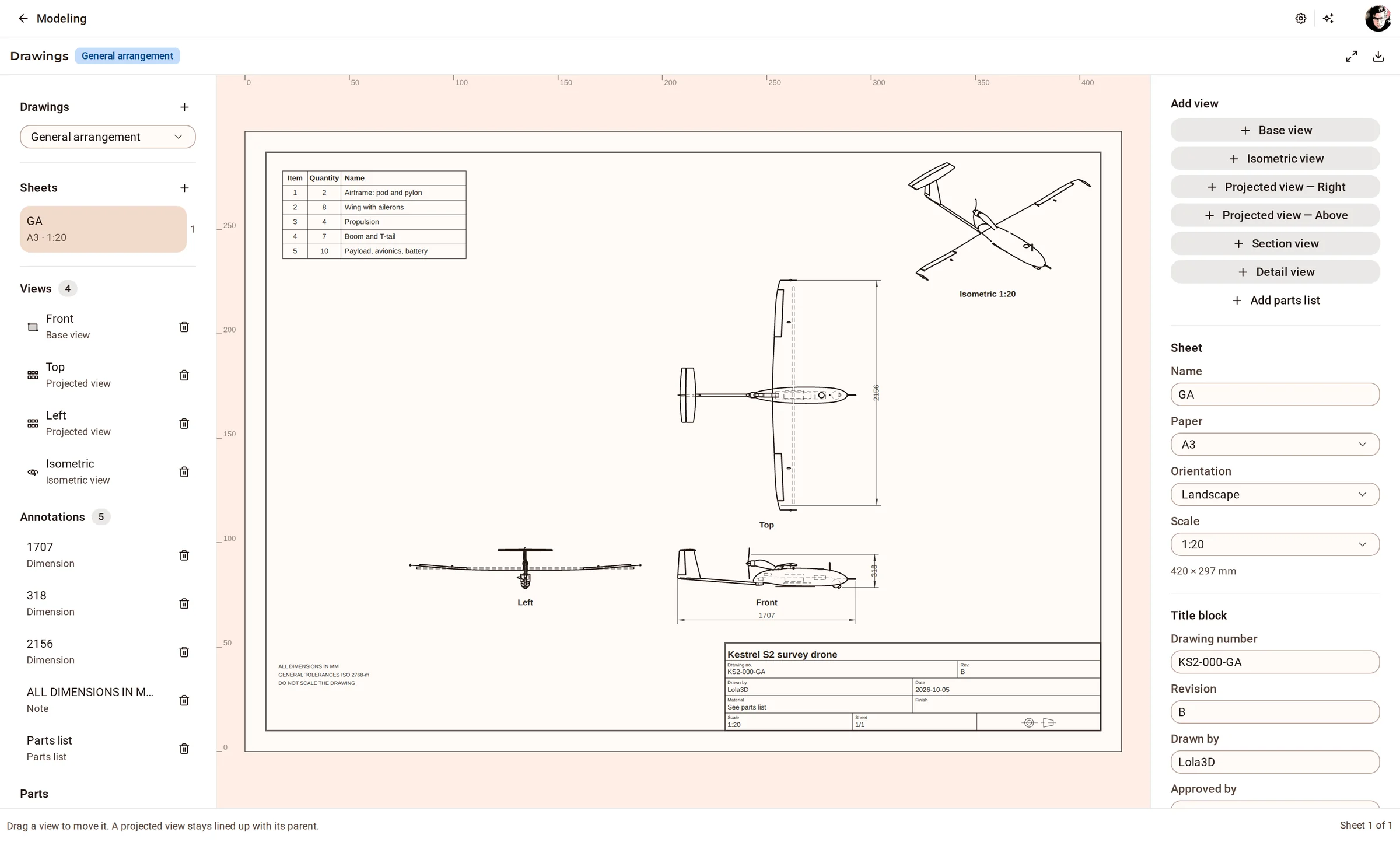

Associative drawings — a general arrangement in third angle: three views, an isometric, a parts list and dimensions on the model's edges. — Associative drawings
A general arrangement in third angle: three views, an isometric, a parts list and dimensions on the model's edges.

Simulation — linear static stress on the exact B-rep, coloured by von Mises stress. — Simulation
Linear static stress on the exact B-rep, coloured by von Mises stress.

CAM

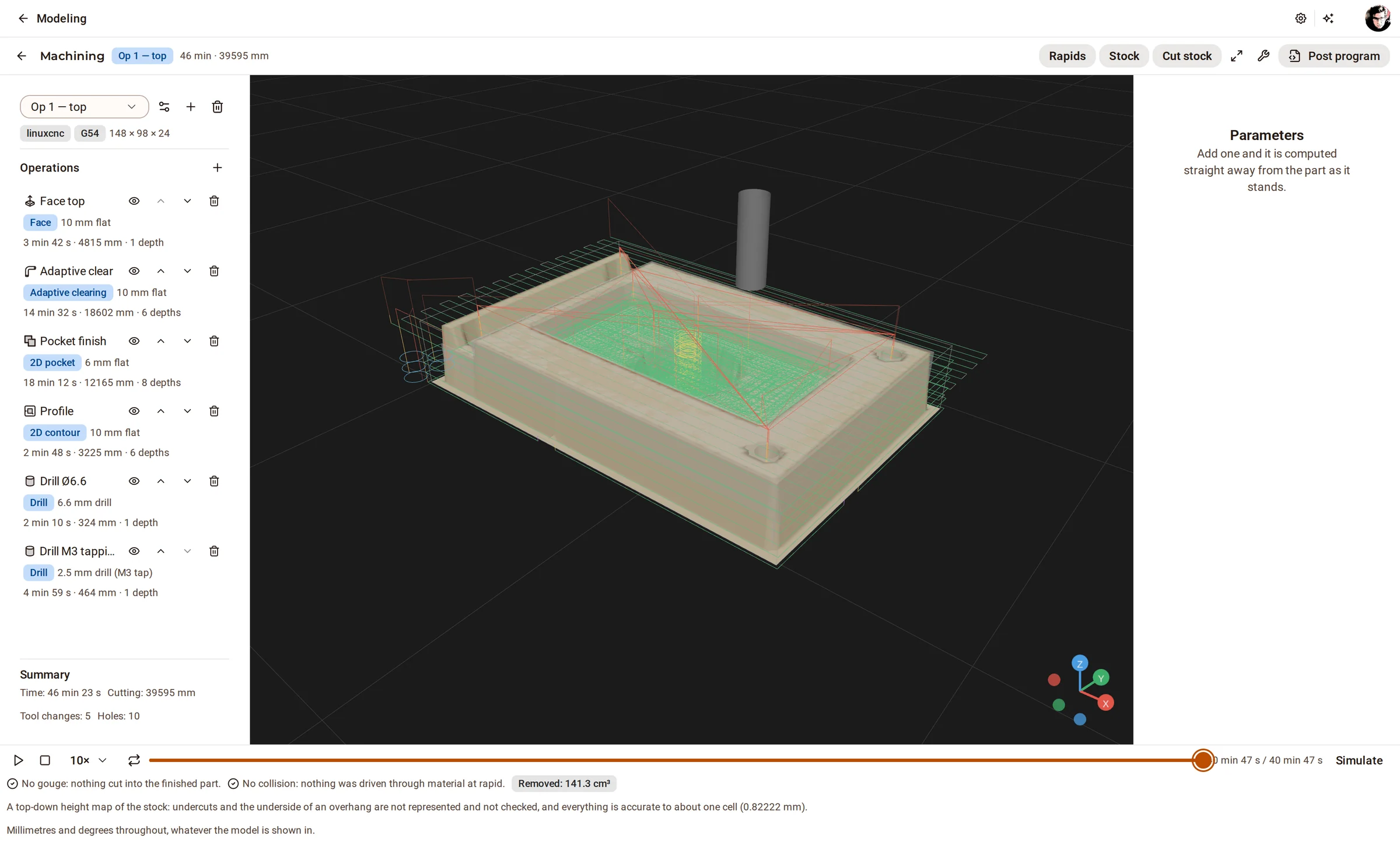

Facing, adaptive clearing, a finished pocket, a tabbed profile and two drilling cycles — simulated by material removal.

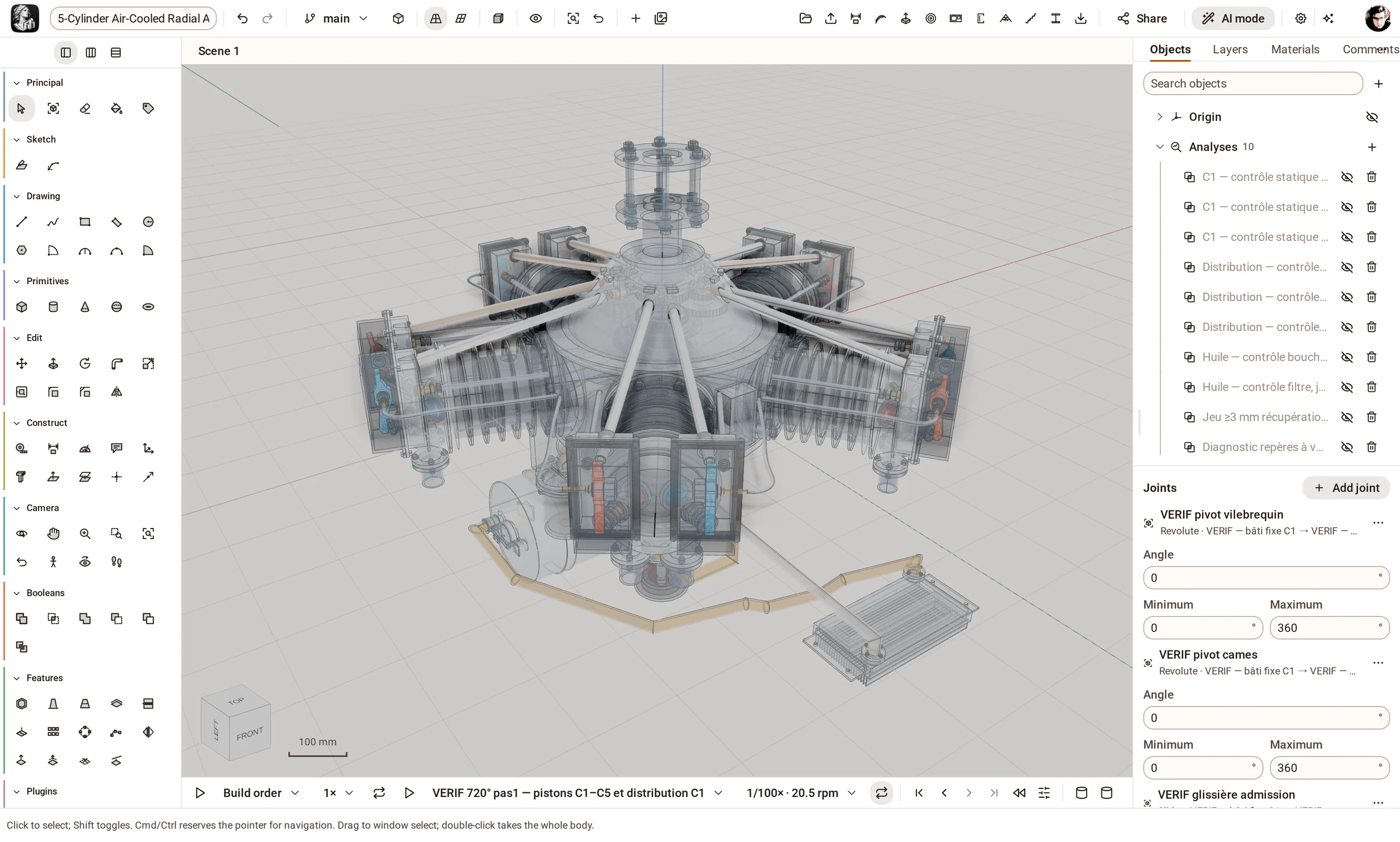

Assemblies — 71 components and 89 joints in the browser. — Assemblies
71 components and 89 joints in the browser.

Materials and scenes — real materials, lighting and shadows on a timber house. — Materials and scenes
Real materials, lighting and shadows on a timber house.

The parametric timeline — roll back, reorder, suppress and replay. — The parametric timeline
Roll back, reorder, suppress and replay.

The browser — origin, components, bodies, sketches and analyses. — The browser
Origin, components, bodies, sketches and analyses.

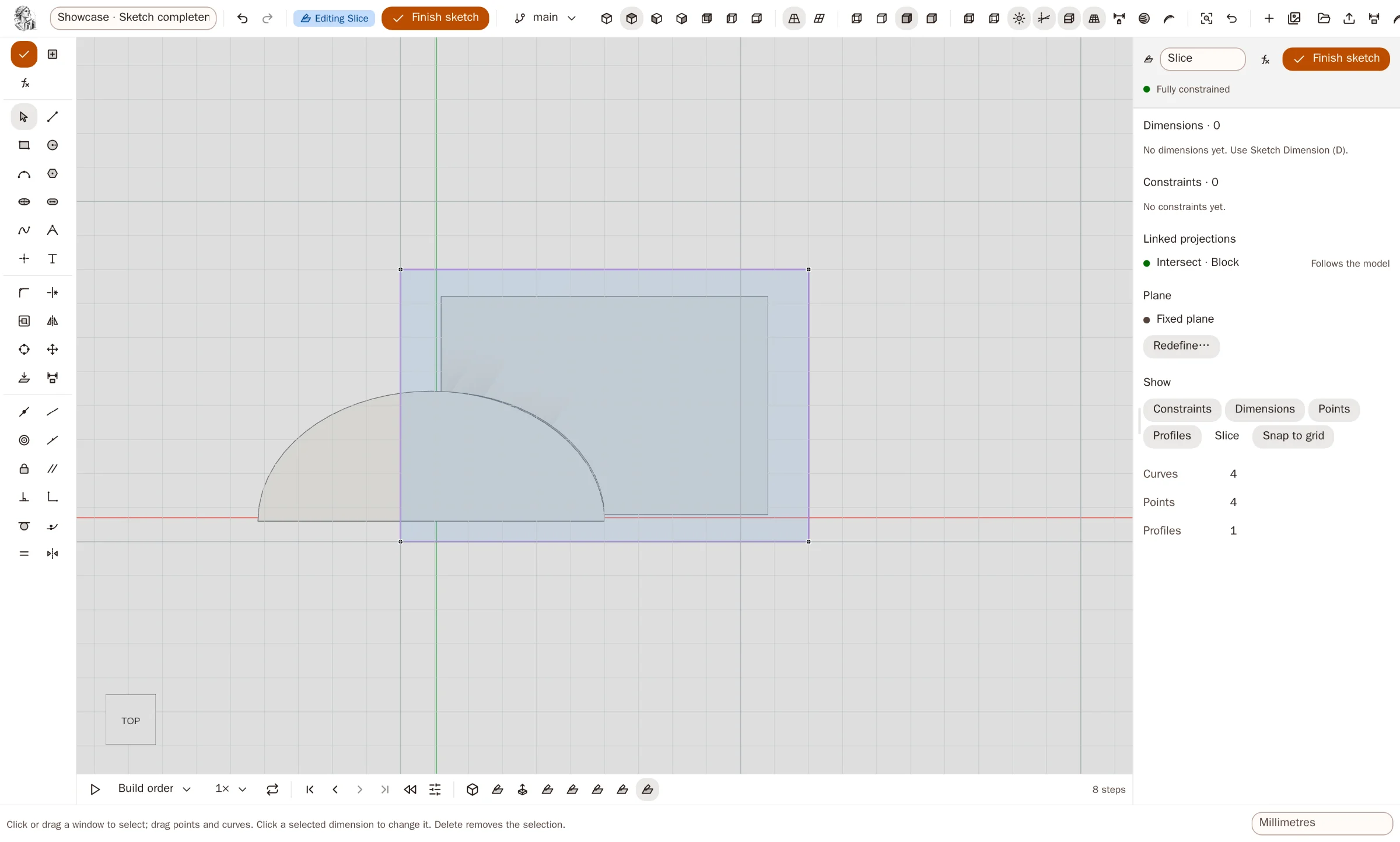

Constrained sketching — the sketch editor with its constraints and degrees of freedom. — Constrained sketching
The sketch editor with its constraints and degrees of freedom.

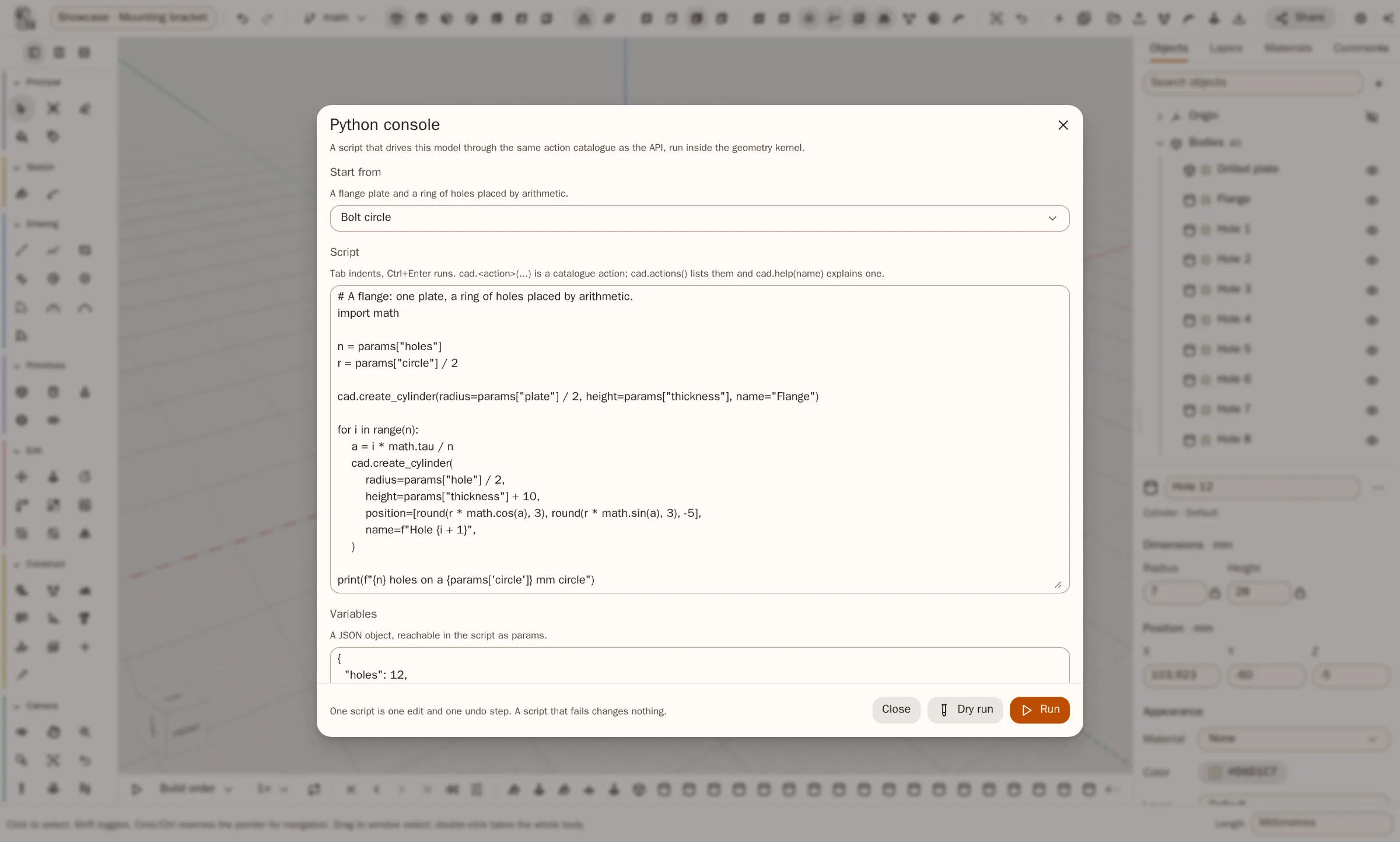

The Python console — a script driving the same catalogue as the API. — The Python console
A script driving the same catalogue as the API.
