Use case · Mechanical design
Aircraft, robots, engines — and the parts inside them.
An unmanned helicopter down to its swashplate, a survey drone with its general-arrangement drawing, an underwater ROV and a six-wheeled rover; a radial engine turned through 720° by a motion study. All built, checked and documented in Kozorosa.
The workflow
From part to mechanism to shop.
- Parts from constrained sketches, features and a parts library of gears, threads, bolts and springs.
- Assemblies with revolute and slider joints, gear and cam links, and motor-driven studies.
- Checks: interference and clearance analyses, mass and inertia, plain-language requirements.
- Proof: static stress and modal analysis on the parts that carry load.
- Output: drawings with section and detail views, toolpaths and G-code, STEP for your suppliers.
Built in Kozorosa
Real products, modelled part by part.
Nereid R6 underwater ROV
185 bodies in six components: HDPE frame, ABS shell, a 6061 pressure housing behind an acrylic dome, six thrusters, syntactic-foam buoyancy rated for 300 m.
Pathfinder UGV-6 rover
Six wheel stations with hub motors, trailing arms and coil-overs; a 48 V LiFePO4 pack, stereo cameras, LiDAR and a pan-tilt EO/IR mast.

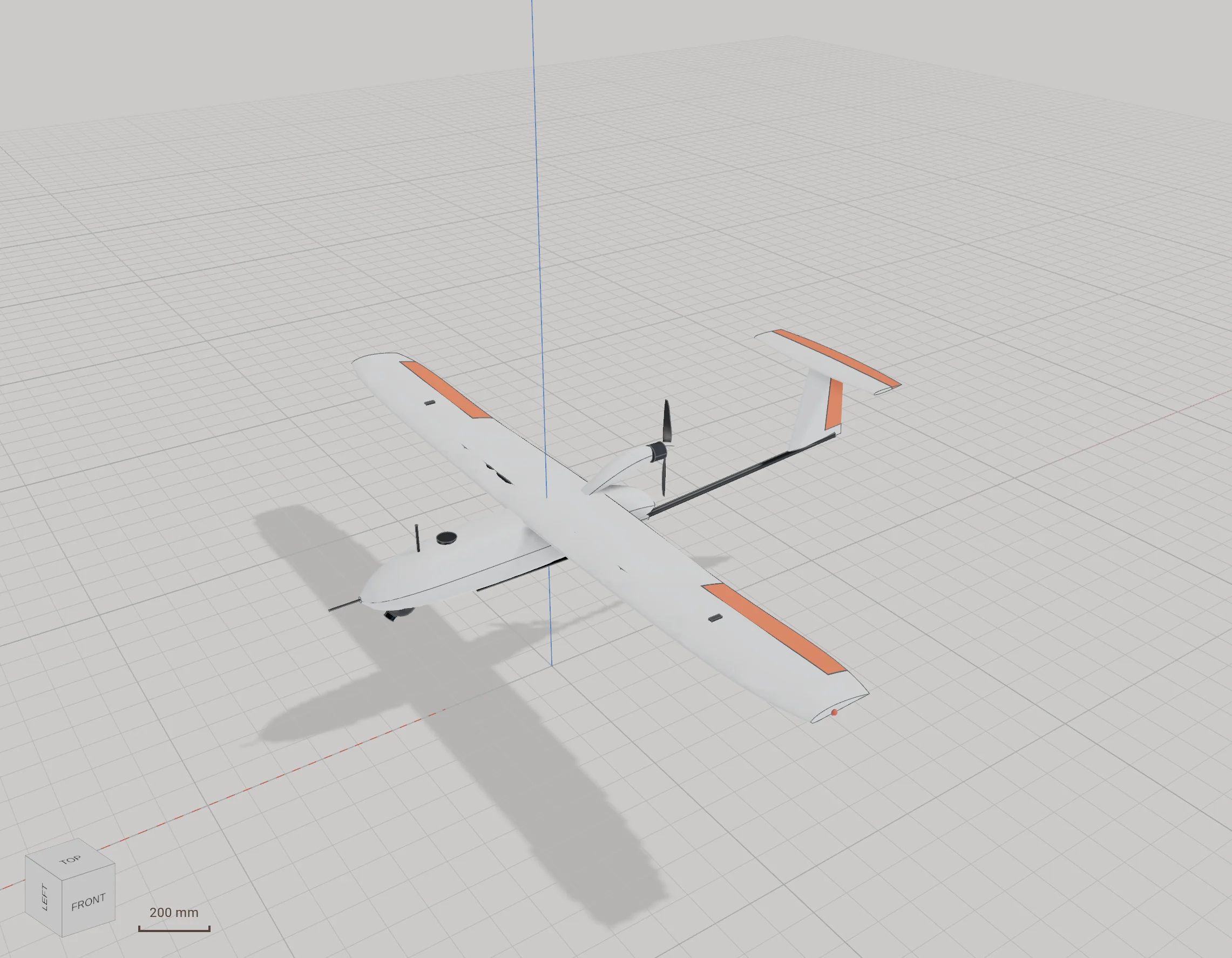

Kestrel S2 survey drone
A 2.2 m fixed-wing with a pusher motor and a 2-axis gimbal — and a general-arrangement drawing projected from the model.
5010 brushless motor
129 bodies, the housing at 30 % opacity to check the magnets clear the stator.
Try it on a part you already have.
Import a STEP file, push a face, put a dimension on it. 5 days, every tool, nothing to pay until you decide.
